Direct API integration sequence diagram

This page provides a high-level overview of the standard integration sequence for processing card payments using the Direct API, incorporating EMV 3DS authentication. It covers all major stages of the transaction lifecycle—starting from order creation and card data submission, through to 3DS challenge handling and final authorization. This visual guide is designed to help developers quickly grasp the request and response flow, understand when to interact with external ACS (Access Control Server) endpoints, and recognize when key state transitions (e.g., STARTED, AWAITING_3DS, AUTHORISED, etc.) occur.

Use this sequence diagram alongside our EMV 3DS2 Recipes for a complete, hands-on implementation guide.

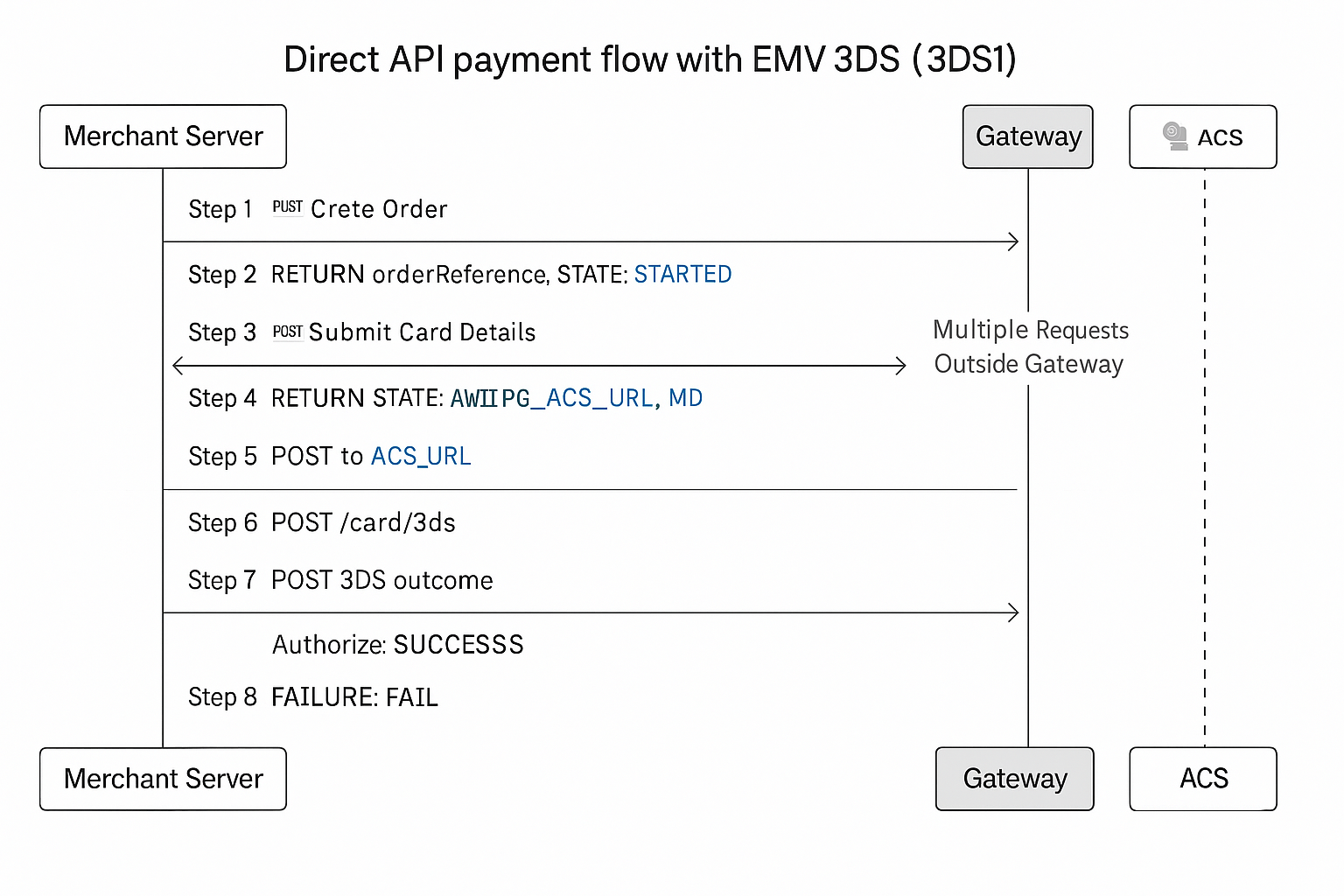

This diagram details the process of handling 3D Secure card payments via the N-Genius Online Direct API, outlining each step, crucial API calls, and the 3DS challenge-response sequence.

This diagram details the process of handling 3D Secure card payments via the N-Genius Online Direct API, outlining each step, crucial API calls, and the 3DS challenge-response sequence.

Easy, step-by-step instructions for developers.

StepActorAction
1Merchant ServerCreate Order – Send a POST request to /orders to create a new order.
2GatewayResponds with orderReference and order in STATE: STARTED.
3Merchant ServerSubmit Card Details via a PUT to /payments/{paymentRef}/card.
4GatewayResponds with STATE: AWAITING_3DS and returns values like PaReq, ACS_URL, MD.
5Merchant ServerPOST to ACS_URL (outside Gateway) to initiate 3DS challenge.
6ACSSends back PaRes and MD after challenge is completed.
7Merchant ServerPOST 3DS outcome to /card/3ds.
8GatewayValidates 3DS outcome and either authorizes the transaction or returns a failure.
9Merchant ServerReceives final state: AUTHORISED, CAPTURED, or FAILURE.
 This diagram outlines the step-by-step flow for processing card payments with 3D Secure using the N-Genius Online Direct API, including the key API calls and 3DS challenge-response steps.

Direct API Integration Flow — This diagram outlines the step-by-step flow for processing card payments with 3D Secure using the N-Genius Online Direct API, including the key API calls and 3DS challenge-response steps.
